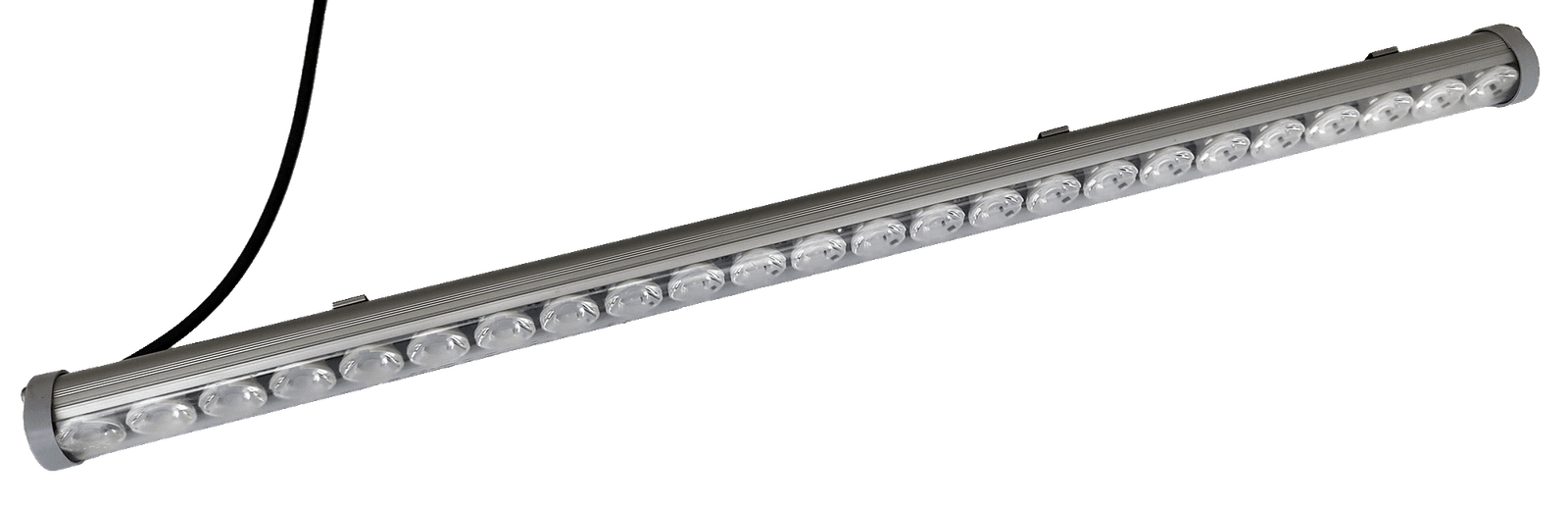

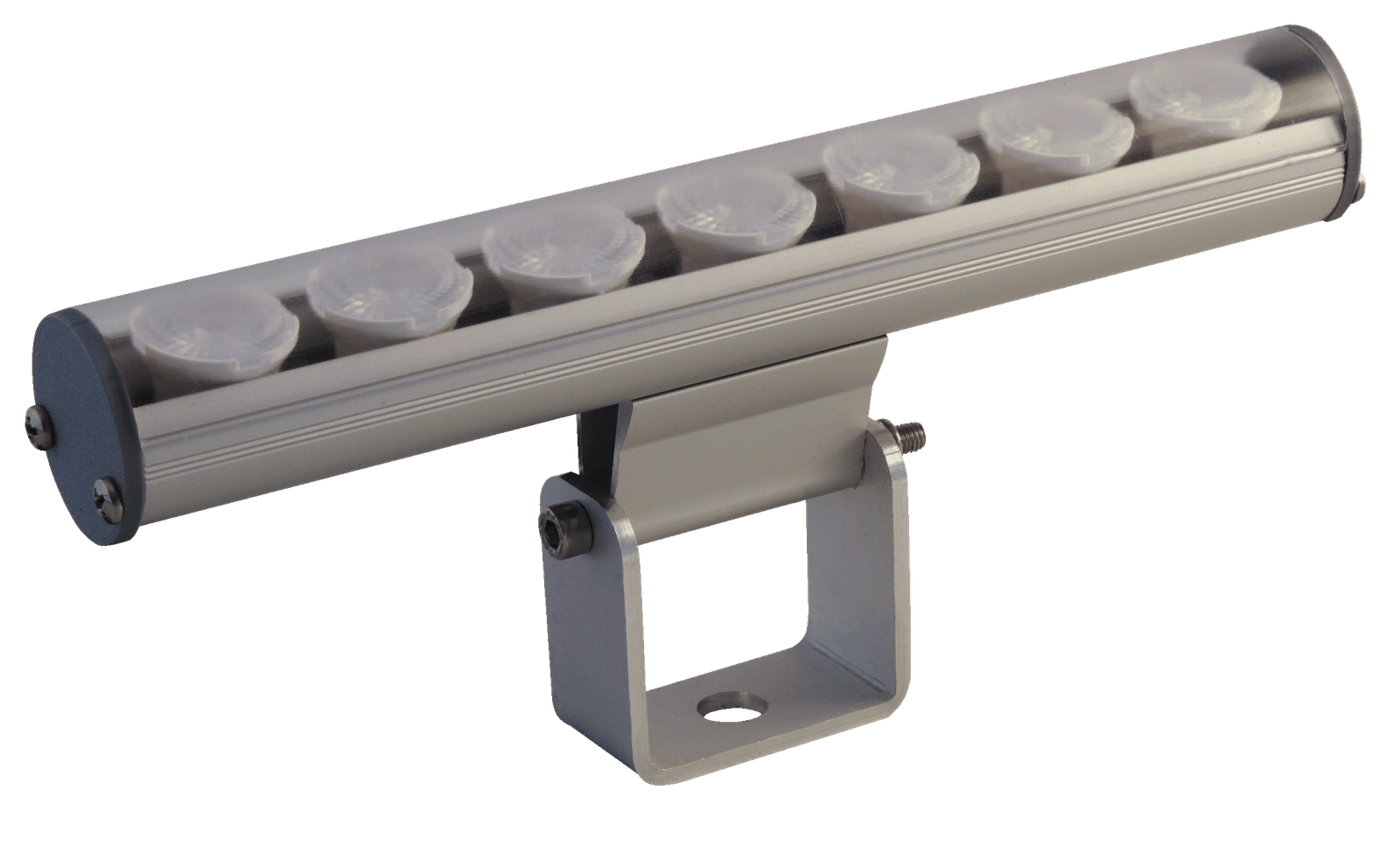

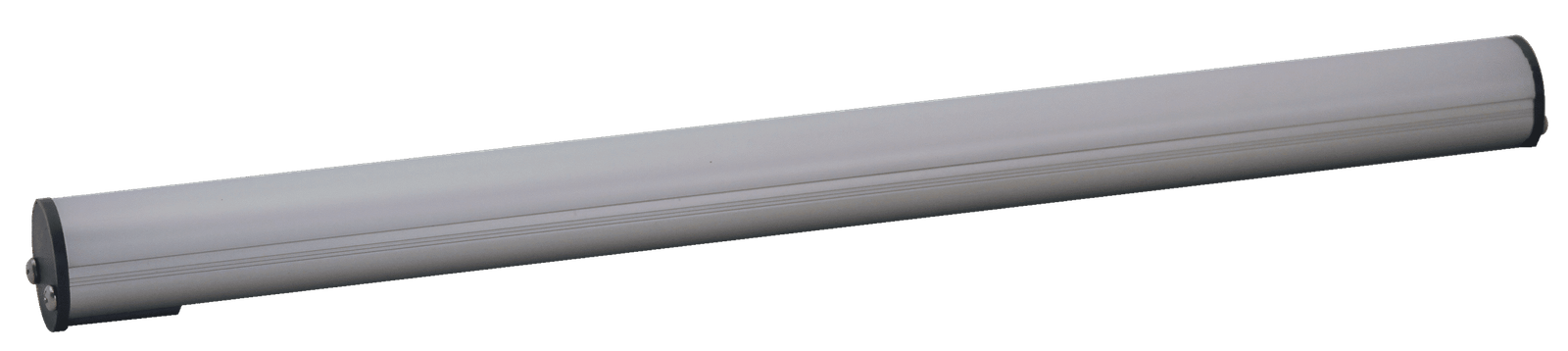

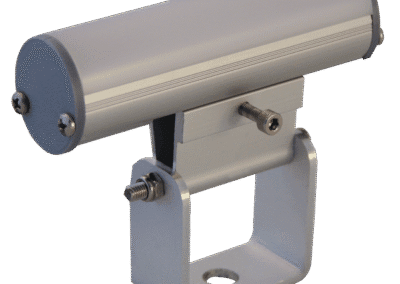

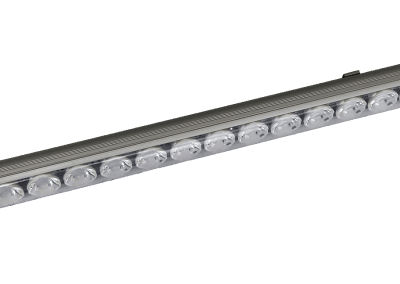

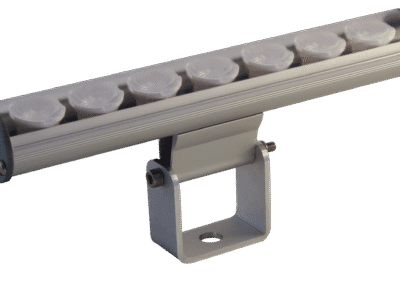

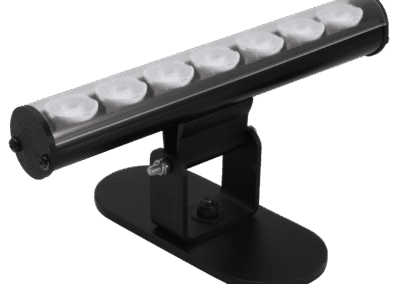

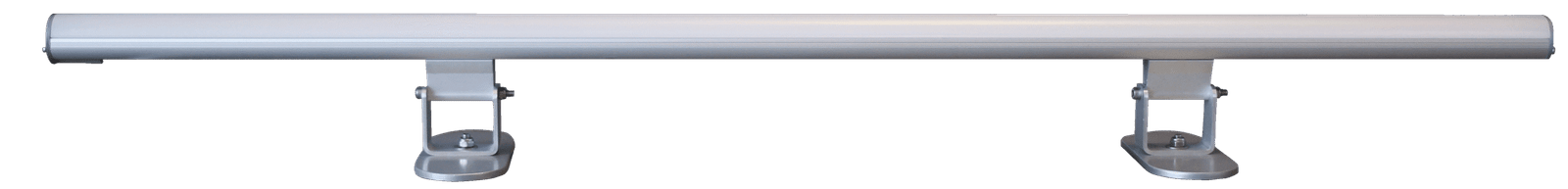

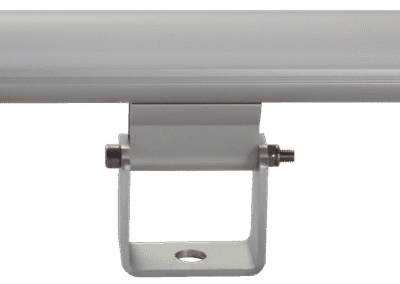

VECTOR RANGE

The AXALIGHT Vector range provides a high level of flexibility by offering a wide array of options enabling the creation of linear fixtures built to suit your application.

Vector models are remotely powered and range from simple power-on fixtures to remote dimming via wireless ArtNet Cloud-Drive or DMX/RDM technologies the choice is yours.

Depending on the application Vector is available in QUAD (RGBW), DUOTEK (White+TriRGB), PIXEL (RGB) and ECO (White) LED options.

Furthermore depending on configuration Vector is available in lengths from 100 to 2,000 mm lengths for total flexibility.

Vector is designed for dry applications, such as residences, on TV sets and architectural applications.

d

Vector Models

TYPE
LEDS
LED#
POWER
CONTROL
LENGTH
DUOTEK 140
White and Dynamic Colour
0.5W White + 0.5W Tri RGB
140 / metre
40 Watts / metre
4x24V-CV
100~2000 in 100mm increments
DUOTEK 70
White and Dynamic Colour
0.5W White + 0.5W Tri RGB
70 / metre
34 Watts / metre
4x24V-CV
200~2000 in 200mm increments
MONO 140
Single Colour
0.5W White
140 / metre
20 Watts / metre
24V-CV
50~2000 in 50mm increments
MONO 70
Single Colour
0.5W White
70 / metre
20 Watts / metre
24V-CV
100~2000 in 100mm increments
MONO 35
Single Colour
0.5W White
35 / metre
10 Watts / metre
24V-CV
200~2000 in 200mm increments
MONO 40+
Single Colour
1.0W White
40 / metre
40 Watts / metre
24V-CV
100-2000 in 100mm increments
PIXe 100
RGB Pixel Control
0.25W Tri RGB
100 / metre
25 Watts / metre
5V, SDA, CLK
100-2000 in 100mm increments
PIXe 40
RGB Pixel Control
0.25W Tri RGB
40 / metre
10 Watts / metre
5V, SDA, CLK
100-2000 in 100mm increments
QUAD 35
RGBW Dynamic Colour
4W QUAD RGBW
35 / metre
42 Watts / metre
4x24V-CV
200~2000 in 200mm increments

Vector LED Option Featues

DuoTek W+RGB

DUOTEK™ provides high-efficiency, high CRI Filament-White 2700° Kelvin LEDs combined with TriRGB LEDs to provide wide angle colour mixing and true white from the same fixture.

MONO WHITE

MONO is the option for single colour lighting applications. White LEDs provide high efficency and colour rendering.

PIXe RGB

PIXEL RGB provides individual control of each RGB  LED allowing for highly dynamic pixel colour controled systems.
