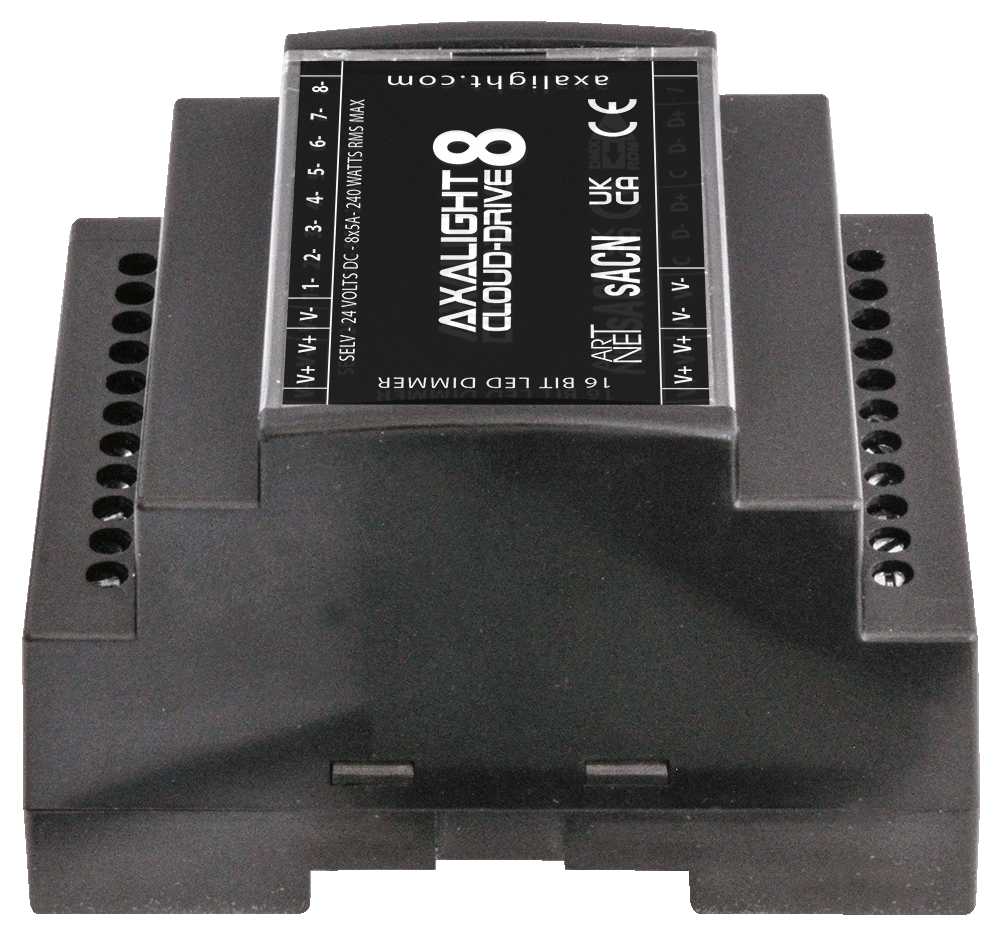

CLOUD-DRIVE 8 - CD8

WFI/ARTNET 16bit low voltage dimming and DIN rail flexibility for constant voltage LED applications.
(for wired DMX see our DMX DRIVE 8)

Z

FEATURES

  • WiFi/ArtNet wireless control input
  • Internal medium range antenna (~15m)
  • 8 x CV constant voltage LED control outputs
  • 8-bit personality mode (8 channel footprint)
  • 16-bit personality mode (16 channel footprint)
  • Smoothed or non-smoothed personality modes
  • Compact DIN rail format
  • SELV DC supply input
  • Screw terminals (pluggable)
Z

PROTOCOL

  • WiFi 2.4 Ghz (2.412 ~ 2.484 GHz)
  • 802.11 b/g/n (n up to 150 Mbps)
  • Internal 3 dBi antenna (external options to 15 dBi)
  • Configurable SSID
  • WEP/WPA-TKIP/WPA2-CCMP security
  • DHCP or manual IP configuration
  • Broadcast ArtNet (configurable universe and start address)
  • Broadcast sACN (configurable universe and start address)

WiFi ArtNet sACN

g

8 LED Output Ch.

16 & 8 Bit Dimming

24 Volts SELV

DIN Rail Mount

IP22 Dry Spaces

ELECTRICAL

  • 24 Volt DC supply input
  • Common anode (+)
  • 8 x controlled cathode (-) outputs
  • 5 Amps per channel load peak (120W)
  • 10 Amps total RMS continuous load (240W)
1

PHYSICAL

  • 70W x 91H x 60D mm (110H with fixing tabs)
  • 4 DIN rail modules wide
  • 150 grams product weight
  • IP20 protection rating
  • -20° ~+50°C ambient temp

CONNECTIONS

  • V+ | Supply Input +24 Volts
  • V- | Supply Input 0 Volts (Common)
  • 1- | Channel 1 output
  • 2- | Channel 2 output
  • 3- | Channel 3 output
  • 4- | Channel 4 output
  • 5- | Channel 5 output
  • 6- | Channel 6 output
  • 7- | Channel 7 output
  • 8- | Channel 8 output
  • Note | All V+ are linked internally
  • Note | All V- are linked internally

IMPORTANT

If removing cover, ensure correct orientation on refitting!

INSTRUCTIONS

  • For professional installation only
  • Use SELV power supplies of 24 Volts DC
  • Ensure power supplies are equiped with short circuit and over current protection
  • Mount in vertical orientation with air vents slots top and bottom
  • Ensure adequate airflow / ventiallation
  • Make all connections before energising
  • Test loads before connection to DD8
  • Use RDM equiped controller/tester to configure DMX start address and personalaties
