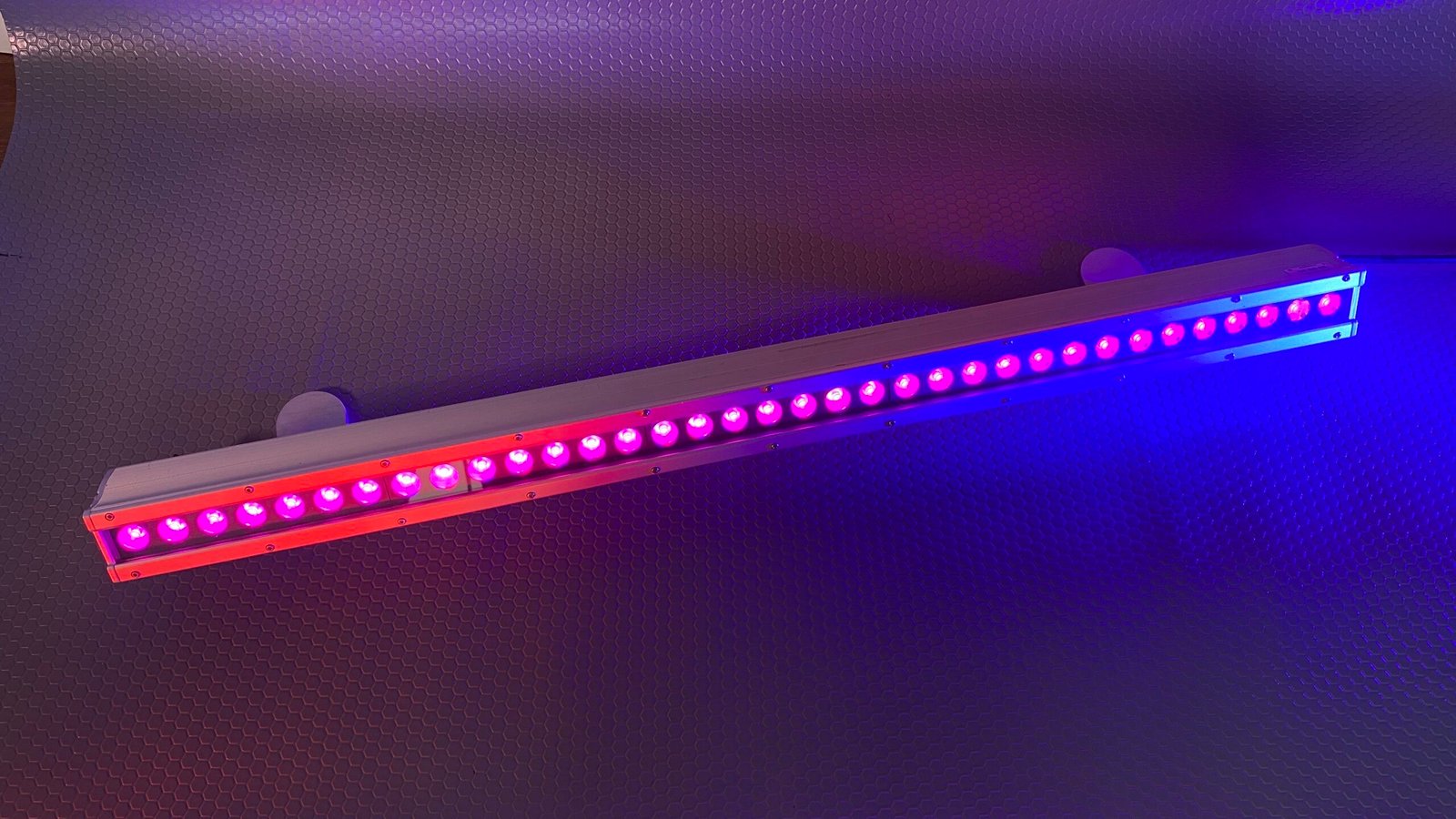

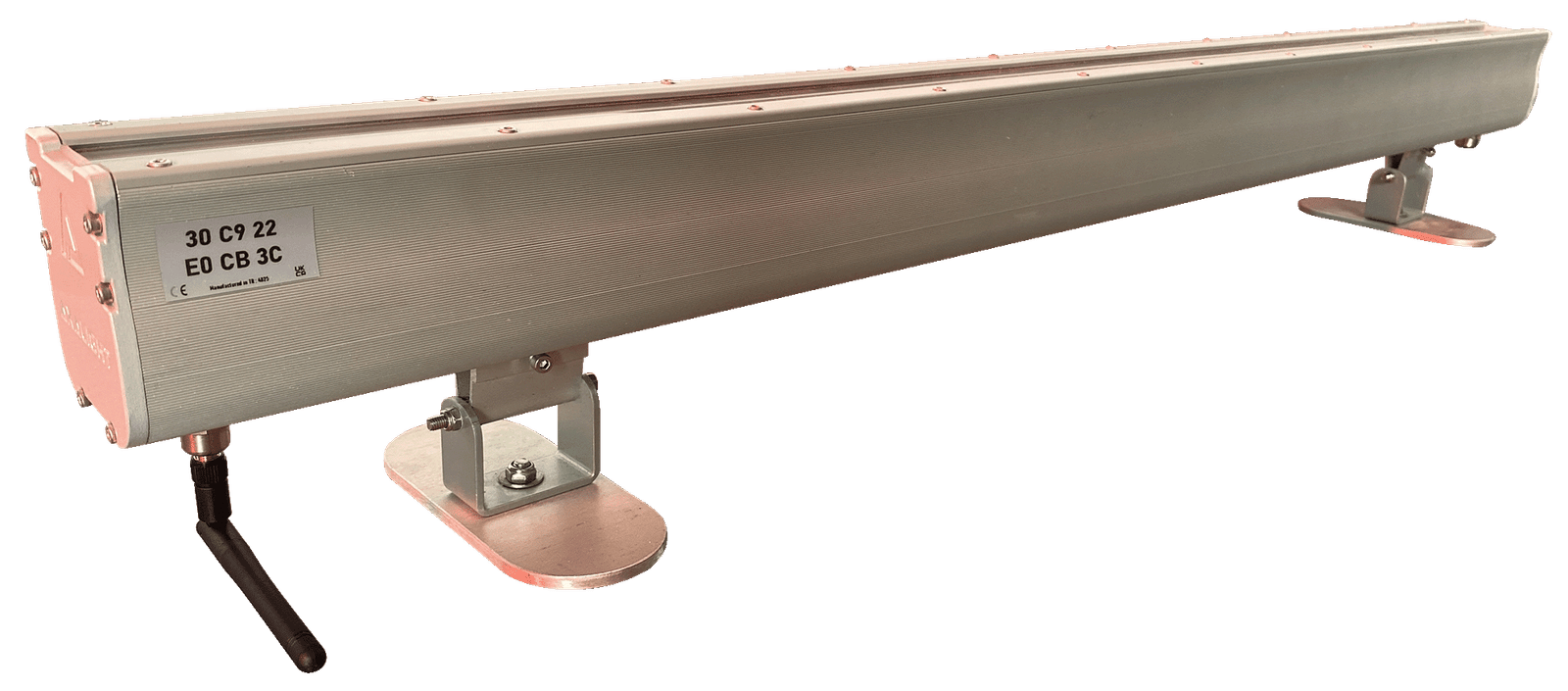

SKYLINE RANGE

The AXALIGHT SkyLine range provides a high level of flexibility by offering a wide array of options enabling the creation of linear fixtures built to suit your application.

From simple power-on fixtures to inbuilt dimming via wireless ArtNet Cloud-Drive or DMX/RDM technologies the choice is yours.

Depending on the application SkyLine is available in QUAD (RGBW), DUOTEK (White+TriRGB), PIXEL (RGB) and ECO (White) LED options.

Furthermore depending on configuration SkyLine is available in lengths from 100 to 2,000 mm lengths for total flexibility.

SkyLine is specifically designed for exterior applications with IP rating validated with the AXALIGHT PreSure system, however SkyLine fixtures are also at home indoors on TV sets and architectural applications.

d

SkyLine Models

TYPE
LEDS
LED#
POWER
CONTROL
LENGTH
SUPPLY
QUAD 35
Dynamic Colour
4W QUAD RGBW, RGBA
35 / metre
75 Watts / metre
DMX/RDM , Cloud-Drive, 24V-CV
200, 400, 600, 800, 1000, 1200
MAINS, 24V-DC
DUAL 35
Tunable White
4W DUAL WW/CW, White/Amber
35 / metre
75 Watts / metre
DMX/RDM , Cloud-Drive, 24V-CV
200, 400, 600, 800, 1000, 1200
MAINS, 24V-DC
MONO 35
Single Colour
4W MONO White Amber Yellow Red Green Blue
35 / metre
60 Watts / metre
DMX/RDM , Cloud-Drive, 24V-CV
200, 400, 600, 800, 1000, 1200
MAINS, 24V-DC
DUOTEK 140
White and Dynamic Colour
0.5W White + 0.5W Tri RGB
140 / metre
40 Watts / metre
DMX/RDM , Cloud-Drive, 24V-CV
100-2000 in 100mm increments
MAINS, 24V-DC
ECO 40
Single Colour White
1.3W White
40 / metre
40 Watts / metre
DMX/RDM , Cloud-Drive, 24V-CV
100-2000 in 100mm increments
MAINS, 24V-DC
PIX e30
RGB Pixel Control
0.25W Tri RGB
30 / metre
8 Watts / metre
SPI, DMX/RDM
100-2000 in 100mm increments
MAINS, 24V-DC
PIX e100
RGB Pixel Control
0.25W Tri RGB
100 / metre
25 Watts / metre
SPI, DMX/RDM
100-2000 in 100mm increments
MAINS, 24V-DC

SkyLine LED Options

TYPE
LEDS
LED#
POWER
MODULES
PITCH
QUAD 35
Dynamic Colour
4W QUAD RGBW(2900K), RGBA
35 / metre
75 Watts / metre
7 LEDs 200mm
31.3mm
DUAL 35
Tunable White
4W DUAL WW/CW, White/Amber
35 / metre
75 Watts / metre
7 LEDs 200mm
31.3mm
MONO 35
Single Colour
4W MONO White Red Green Ble Amber Yellow
35 / metre
60 Watts/ metre
7 LEDs 200mm
31.3mm
DUOTEK 140
White and Dynamic Colour
0.5W White + 0.5W Tri RGB
140 / metre
40 Watts / metre
14 LEDs 100mm
7.1mm
ECO 40
Single Colour White
1.3W White
40 / metre
40 Watts / metre
4 LEDs 100mm
25.0mm
PIX e30
RGB Pixel Control
0.25W Tri RGB
30 / metre
8 Watts / metre
3 LEDs 100mm
33.3mm
PIX e100
RGB Pixel Control
0.25W Tri RGB
100 / metre
25 Watts / metre
10 LEDs 100mm
10.0mm

SkyLine Optic Options

6
12°
24°
36°
15x60°
FROST
CLEAR
QUAD 35
-
DUAL 35
-
MONO 35
-
DUOTEK 140
-
-
-
-
-
ECO 40
-
PIX e30
-
-
-
-
PIX e100
-
-
-
-
-
g

SkyLine Control Options

DMX/RDM
DALI
CLOUD-DRIVE
REMOTE 24CV
PIXeFX DMX
SPI SERIAL
LUXSET
NON-DIM
QUAD 35
-
-
-
DUAL 35
-
-
-
MONO 35
-
-
DUOTEK 140
-
-
-
ECO 40
-
-
PIX e30
-
-
-
-
-
PIX e100
-
-
-
-
-

PreSure™

PreSure™ from AXALIGHT provides an advanced system for validating luminaires and terminations are air-tight and water-tight during manufacture, installation, inspection/service procedures.

Mains Voltage Power

Direct mains power option is ideal for applications where multiple luminaires are linked from a single mains power source.

Low Voltage Power

Ideal for applications requiring additional safety extra low voltage (SELV) requirements, such are near waterways and children's play areas.

QUAD

QUAD colour mixing of Red, Green, Blue and White LEDs in equal measures is ideal for entertainment colour applications requiring lens optics.

DUOTEK

DUOTEK™ provides high-efficiency, high CRI Filament-White 2700° Kelvin LEDs combined with TriRGB LEDs to provide wide angle colour mixing and true white from the same fixture.

ECO

ECO white Nichia LEDs deliver exceptional colour rendering and the highest levels of Lumen per Watt efficiency​. Four TIR lens optics are available.

PIX

PIXel individually addressable LEDs deliver exceptional controllability.

Lens Options

TIR (Total Internal Reflection) Lens options are 12, 24, and 36°, additionally a 15x60° elliptical wall grazing optic is available.

Wide Angle Flood

Wide angle beam angle 120-140° ideal for flooding large areas with light.

Lens Options

TIR (Total Internal Reflection) Lens options are 12, 24, and 36°, additionally a 15x60° elliptical wall grazing optic is available.

Lens Options

TIR (Total Internal Reflection) Lens options are 12, 24, and 36°, additionally a 15x60° elliptical wall grazing optic is available.

PreSure™

PreSure™ from AXALIGHT provides an advanced system for validating luminaires and terminations are air-tight and water-tight during manufacture, installation, inspection/service procedures.
