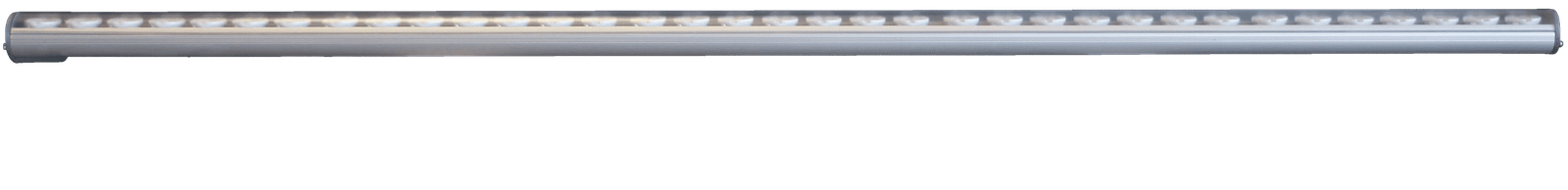

VECTOR VARI V35
VECTOR VARI V35 provides variable white colour temperature controlled linear illumination with lensed optics.
VECTOR models are remotely powered and range from simple power-on fixtures to remote dimming via wireless ArtNet ClouD-DRIVE or DMX/RDM technologies the choice is yours.
VECTOR is designed for dry applications, such as residences, on TV sets and architectural applications.
VECTOR is available in DUOTEK (White+TriRGB), PIXEL (RGB), QUAD (RGBW) and ECO (White) LED options. See the full VECTOR range.
VECTOR VARI V35
VECTOR VARI V35 length options
VECTOR VARI 35 optic options
VECTOR dimensions (1m variant with long bracket option)
VECTOR with local MD4 optional driver
End cap view showing cable entry
VECTOR with optional black finish and stand
VECTOR VARI V35 connections
Vector V35 is fitted with 1.5m of 3 core flex to tinned ends. Colour coding is below:
+24V COMMON = yellow
BLUE - = cold white 6500K
WHITE - = warm white 2700K
VECTOR IP TUBE
The VECTOR IP TUBE addon allows for the deployment of AXALIGHT VECTOR RANGE luminaries in external applications.
External diameter is 40mm with a wall thickness of 2mm allowing for VECTOR luminaires to fit snugly. VECTOR TUBE is manufactured from polycarbonate.
Endcaps are manufactued from ABS and fitted with cable glands giving a system IP rating of IP65
