LED LUMINAIRES

At AXALIGHT we design and manufacture a large selection of LED luminaires to your exact specifications.

AXALIGHT luminaires are designed and manufactured by AXALIGHT in Europe backed by our 5-year warranty. We also offer bespoke solutions to meet your exact requirements.

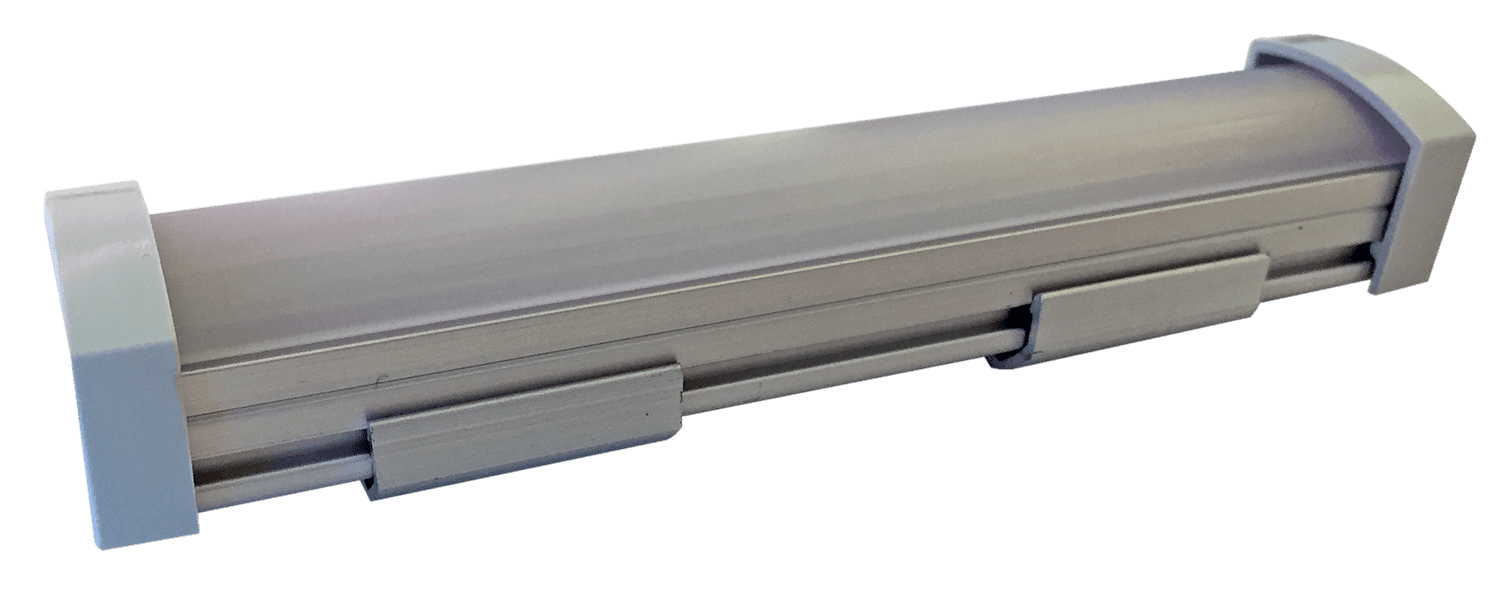

AXALINE

Fully modular, rigid PCB based, sleek aluminium housing linear lighting fixtures ideal for indirect illumination applications such as cove lighting in a wide range of configurations.

  • 100-2000mm lengths
  • Up-to 34 Watts per metre
  • DuoTek, Twin or Mono LEDs
  • Nichia Japan semiconductors
  • Single 1/12 binning, high effiency
  • High efficacy white light >100 lm/W
  • SELV (24V DC)

FLUXY

AXALIGHT FLUXY provides flexible illumination options for a wide array of applications ranging from building facade and monument lighting through to sport and industrial applications.

P

NEW PRODUCT

  • 1-9  module configurations
  • 20 LED Watts per module
  • 12°, 24°, 36° or 15×60° lens option
  • White, Red, Green, Blue, Yellow LEDs
  • Nichia Japan semiconductors
  • Single binning, high efficiency
  • Outdoor or indoor use
  • 90-240 VAC direct power 25W/module

INDUCE

Exterior rated LED fixtures with built Cloud-Drive control available in DuoTek and Mono configurations. Ideal for flood lighting and colour control of architectural features.

  • DuoTek, Quad or Mono LEDs
  • Cloud-Drive wireless Art-Net control
  • DMX/RDM
  • 16 or 8bit modes
  • High efficacy white light >100 lm/W
  • Direct mains powered
  • Single binning, high efficiency
  • Outdoor or indoor use



INLINE

End-to-end illumination in stylish extruded linear fixtures available in DuoTek and Mono LED configurations. Ideal for interior architectural linear illumination applications.

  • 100-2000mm lenghts
  • Up-to 40 Watts per metre
  • DuoTek or Mono LEDs
  • Nichia Japan semiconductors
  • Single binning, high effiecncy
  • Open beam or lens options
  • Removable end caps
  • SELV (24V DC)

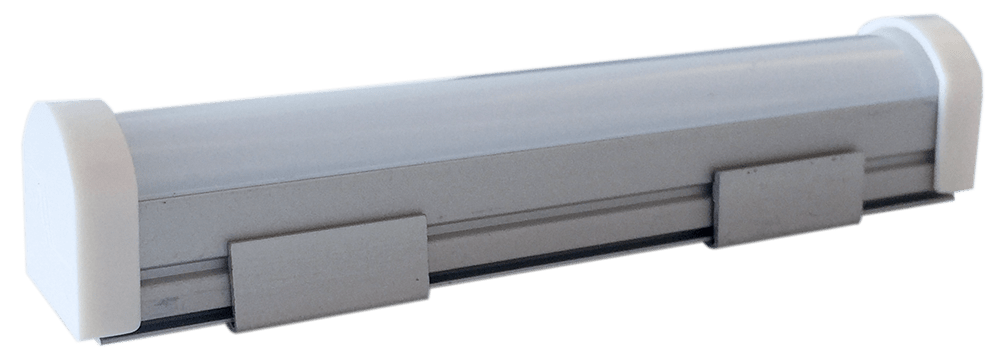

MICRALINE

Fully homogenous, modular, rigid PCB based, high-density, high output linear strips ideal direct viewing applications such as structure outlines, mirror surrounds, etc.

  • 50-2000mm lenghts
  • Up-to 30 Watts per metre
  • Mono LEDs
  • Samsung semiconductors
  • Indoor use
  • SELV (24V DC)



POLAR

Circular light engines ideal for use in AR111 & PAR36 type fittings. Available with or without lenses. Fully dimmable to black using AXALIGHT LED dimmers.
  • 100mm diameter
  • Up to 12 Watts
  • M28: 28 x Mono Nichia LEDs
  • Q7: 7 x QUAD (RGBW) LEDs
  • Lens options
  • Single binning, high efficiency
  • Indoor use
  • SELV (24V DC)



SKYLINE

SKYLINE DUOTEK provides the perfect combination of Filament-White & TriRGB LED technologies specifically designed to enhance building architecture as part of the urban skyline.

  • 100-1200mm lengths
  • Up to 40 Watts per metre
  • DuoTek or Mono LEDs
  • Nichia Japan semiconductors
  • Single binning, high efficiency
  • Outdoor or indoor use
  • Mains or SELV (24V CV)



RELINE

RELINE DUOTEK provides the perfect combination of Filament-White & TriRGB LED technologies specifically designed for recessed applications.

  • 100-2000mm lengths
  • Up to 40 Watts per metre
  • DuoTek or Mono LEDs
  • Nichia Japan semiconductors
  • Single binning, high efficiency
  • Indoor use
  • Removable end caps
  • SELV (24V DC)



VARAXY

AXALIGHT VARAXY provides flexible illumination options for a wide array of applications ranging from building facade and monument lighting through to sport and industrial applications.

P

NEW PRODUCT

  • 1-9  module configurations
  • 20 LED Watts per module
  • Separately adjustable rows
  • 12°, 24°, 36° or 15×60° lens option
  • White, Red, Green, Blue, Yellow LEDs
  • Nichia Japan semiconductors
  • Single binning, high efficiency
  • Outdoor or indoor use
  • 90-240 VAC direct power 25W/module

VECTOR CV

Linear exterior luminaires, designed for seamless end-to-end use. Fully dimmable to black using AXALIGHT LED dimmers.

  • 100-2000mm lengths
  • Up-to 34 Watts per metre
  • DuoTek or Mono LEDs
  • Nichia Japan semiconductors
  • Single binning, high efficiency
  • Outdoor or indoor use options
  • SELV (24V CV remote dimmable)



VECTOR DUOPIX

Linear DMX controlled exterior luminaires, designed for seamless end-to-end use. Fully dimmable and controllable directly by DMX.

P

NEW PRODUCT

  • 100-2000mm lengths
  • Up-to 34 Watts per metre
  • DuoTek, Tri, or Mono LEDs
  • Nichia Japan semiconductors
  • Single binning, high efficiency
  • Outdoor or indoor use options
  • SELV (24V Supply and DMX-512 control)



VERTEX

Compact exterior fixtures featuring DuoTek technology to provide points of colour around structures.

  • 60mm diameter dome
  • up-to 4 Watts
  • DuoTek or Mono LEDs
  • Nichia Japan semiconductors
  • Single binning, high efficiency
  • Outdoor or indoor use
  • SELV (24V DC)



LED CONTROL

To complement our LED lighting fixtures we manufacture high specification LED control and dimming solutions:
g

From urban architecture to Cloud and wireless, whatever your application AXALIGHT can provide a control and LED drive system to meet your requirements.

CLOUD-CONTROL

Cloud-Control is a Windows software application that provides system integrators and technicians configuration of AXALIGHT Cloud-Drive enabled lighting luminaires and LED dimmers.

  • Cloud-Control configures settings:
  • ArtNet universe
  • DMX start address
  • DMX resolution
  • Power on level memory
  • Max total power level

CLOUD-DRIVE 4

Cloud-Drive4 communicates over WiFi and Art-Net for fast installation and mobile systems whilst offering flicker-free, super smooth dimming right down to black.

  • Wireless control
  • 16/8 bit dimming with smoothing
  • 4 x 5A constant Voltage outputs
  • up-to 480 Watts peak
  • Wireless control
  • Art-Net protocol
  • DIN rail mounting
  • SELV (24V DC)

DIN-DRIVE 4

DMX dimming and DIN rail flexibility for
constant voltage LED control applications.

  • DMX-512 control
  • 16/8 bit dimming with smoothing
  • 4 x 5A constant Voltage outputs
  • RDM remote configuration
  • up-to 480 Watts
  • DIN rail mounting
  • SELV (24V DC)



DIN-SPLIT 3

The AXALIGHT DIN-SPLIT >3< is a 3 way DMX splitter/buffer ideal for installation applications requiring DMX distribution in a DIN-RAIL format.

P

NEW PRODUCT

  • DMX IN/THRU with DATA status indication.
  • Three isolated independent DMX outputs with status indication.
  • Inputs and outputs protected agains static and shorts.
  • 12-24 VDC Supply Power (SELV).
  • Individual, pluggable screw terminals for each DMX connection.
  • DMX driver ICs socketed for ease of service.
  • DIN rail mounting
