VECTOR DUOTEK DT140

VECTOR DUOTEK 140 from AXALIGHT provides the perfect combination of Filament-White & TriRGB LED technologies, packaged in sleek, robust aluminium extrusion with polycarbonate cover optic.
VECTOR DUOTEK 140 is powered by high-efficiency 2700K Filament-White LEDs with high CRI carefully combined with TriRGB colour mixing LED devices to provide endless colour mixing capabilities and true warm filament type white from the same fixture.
Combining Filament-White and TriRGB sources allows for creation of clean cool white with a very high CRI of 95 Ra.
VECTOR DUOTEK can be colour controlled and smoothly dimmed, using AXALIGHT drivers down to 0.1% brightness for precise ambiance control.
VECTOR DUOTEK is ideal for cove lighting applications in offices, hotels, ballrooms, bars, restaurants and casinos.
AXALINE DUOTEK is extremely compact with only a compact 30x32mm profile including end caps and clips
The AXALIGHT VECTOR DT140 range provides a high level of flexibility by offering a wide array of options enabling the creation of linear fixtures built to suit your application.
VECTOR DT140 models are remotely powered and range from simple power-on fixtures to remote dimming via wireless ArtNet ClouD-DRIVE or DMX/RDM technologies the choice is yours.
VECTOR DT140 is available in lengths from 100 to 2,000 mm lengths for total flexibility. Designed for dry-location use,
VECTOR is perfect for high-end residential, broadcast, and architectural projects.
VECTOR is available in DUOTEK (White+TriRGB), PIXEL (RGB), QUAD (RGBW) and ECO (White) LED options. See the full VECTOR range.
VECTOR DUOTEK DT140
VECTOR DUOTEK DT140 length options
VECTOR DUOTEK DT140 optic options
VECTOR dimensions (1m variant with long bracket option)

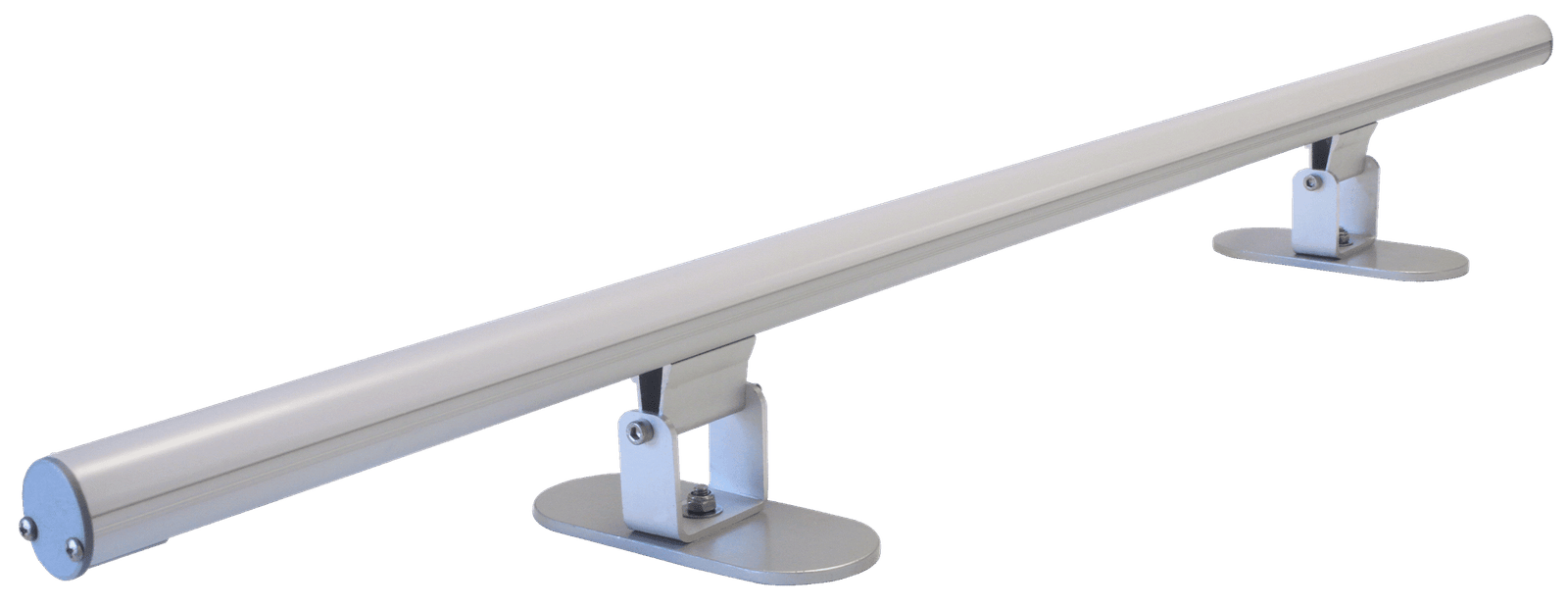

VECTOR with brackets and base

End cap view showing cable entry

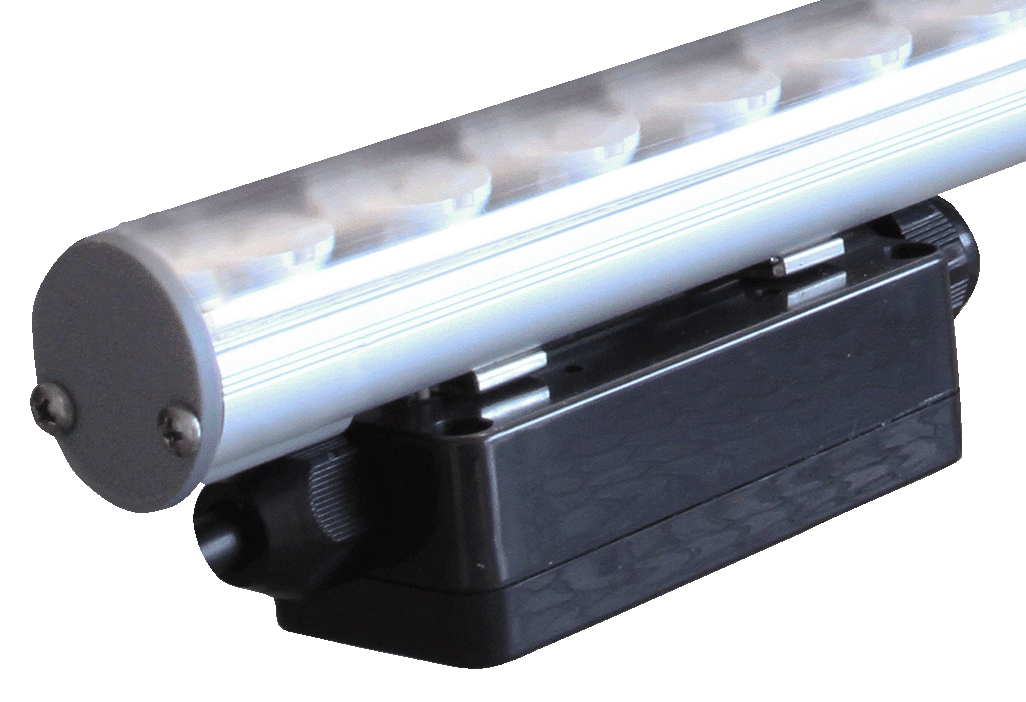

MD4 driver mounted on VECTOR

Connections
VECTOR DUOTEK DT140 connections
Vector DT140 is fitted with 1.5m of 5 core flex to tinned ends. Colour coding is below:
+24V COMMON = yellow
RED – = red
GREEN – = green
BLUE – = gray
WHITE – = white
VECTOR IP TUBE
The VECTOR IP TUBE addon allows for the deployment of AXALIGHT VECTOR RANGE luminaries in external applications.
External diameter is 40mm with a wall thickness of 2mm allowing for VECTOR luminaires to fit snugly. VECTOR TUBE is manufactured from polycarbonate.
Endcaps are manufactued from ABS and fitted with cable glands giving a system IP rating of IP65
