HEXI PENDANT

HEXI PENDANT

  • Hexagonal pendant LED luminaires
  • MONO or QUAD LEDs
  • DMX, Wi-Fi or remote 24CV dimming
  • Low Voltage or Mains supply
  • Lens optics from 3° to 60°
  • Linkable to incrementally increase power
  • Alluminium extrusion body
  • Integral snoot
  • Pendant suspension
  • Custom powder coating

HEXI PENDANT

HEXI from AXALIGHT is a luminaire range designed to be super HEXIBLE.

HEXI puts you in control by being available to your specification in literally thousands of bespoke configurations.

From high efficiency single colour luminaires through to pixelated colour control, along with a wide range of optics allows you to select just the right configuration for your application.

HEXI cells are factory linked allowing you incremental increase in luminosity suit your requirement. Combinations of different types of HEXI cells be combined to create multipurpose luminaires with hybrid LED technologies.

HEXI control options include remote 24 CV dimming, DMX/RDM, Wi-Fi Artnet.

d

HEXI PENDANT Models

MODEL
APPLICATION
LEDs
LED POWER
FLUX (maximum)
EFFICIENCY (all@full)
HEXI M7+
HEXI MONO 7+
High Efficency Single Colour Illumination
7 x White, Red, Green, Blue or Yellow
16.8 Watts
2,486 lumens
148 lumens/Watt
HEXI Q7+
HEXI QUAD 7+
Dynamic Colour Control
7 QUAD RGBW
16.8 Watts
1,516 lumens
90 lumens/Watt

HEXI PENDANT LED Colour Options

MODEL
RGBW
2500°K
2700°K
3000°K
4000°K
6500°K
RED
GREEN
BLUE
YELLOW
M7+
HEXI 7+
-
HEXI Q7+
HEXI QUAD 7+
-
-
-
-
-
-
-
-
-

HEXI PENDANT Optic Options

MODEL
3°
6°
10°
20°
40°
60°
6x40°
FROST
CLEAR
HEXI M7+
HEXI MONO 7+
HEXI Q7+
HEXI QUAD 7+
g

HEXI PENDANT Control / Power Options

MODEL
CONSTANT VOLTAGE
DMX/RDM
WiFi/ArtNet
24V POWER
HEXI M7+
HEXI MONO 7+
HEXI Q7+
HEXI QUAD 7+
1

HEXI Physical

HEXI SINGLE CELL
DIMENSIONS
111mm apex to apex, 97mm face to face
Depth 200mm (max 500mm custom to order)
WEIGHT
400 grams (75mm deep body including bracketry)
MATERIALS
Body: Alluminium extrusion matt annodised
Bracketry: Powder coated alluminium
INGRESS
IP22 (without front optic)
IP44 (2mm front optic)
IP67 (8mm front optic and gaskets)
1

HEXI VECTOR IP Options

IP44 | Undercover Outdoor & Sheltered Areas

IP44 protctions for locations that are “undercover” – sheltered from direct weather but still exposed to some outdoor elements. Offers an ideal and practical level of protection.

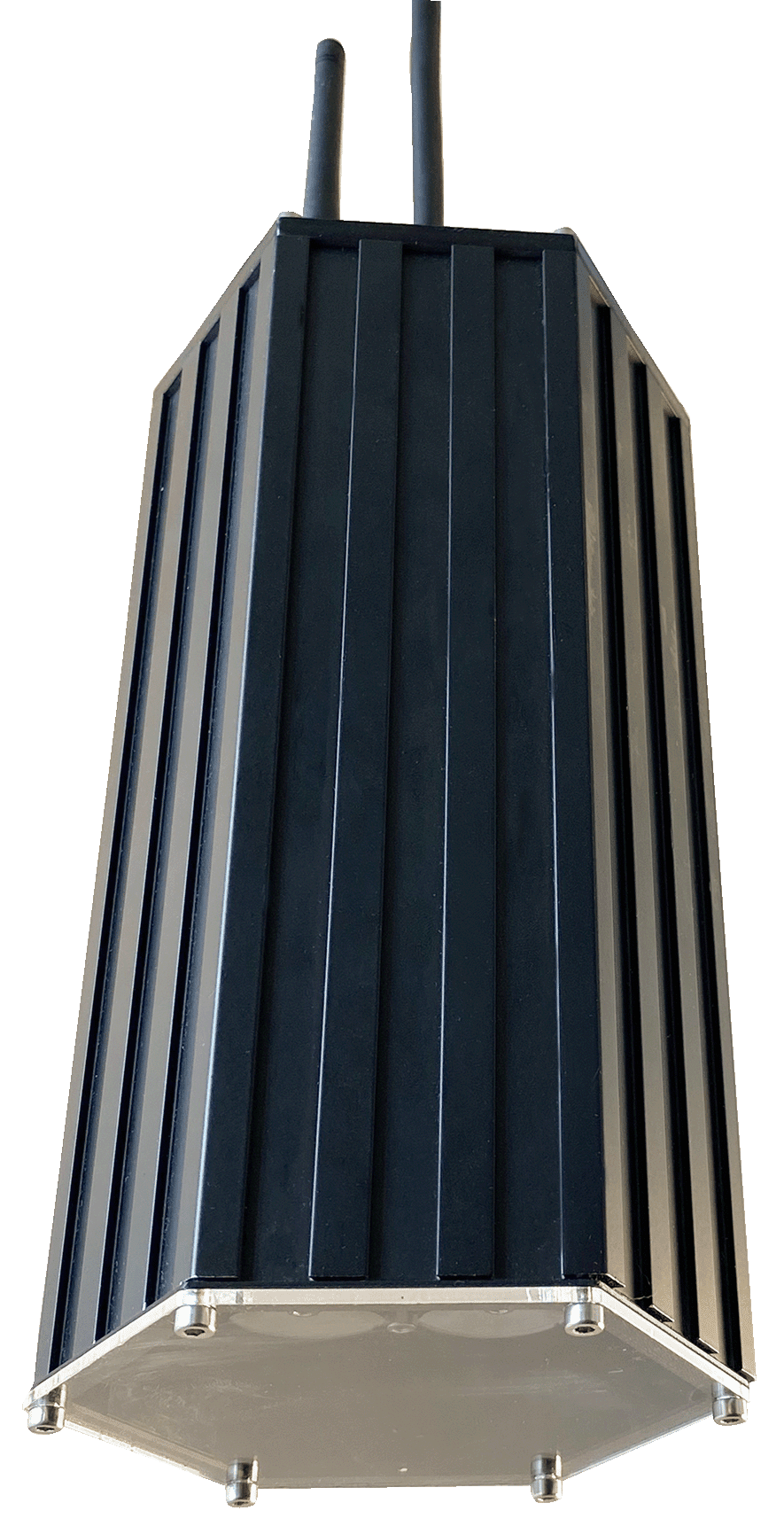

HEXI Q7+ PENDANT

Available in a vast array of options, HEXI is designed for Lighting Your Way
The HEXI Range
